제품 상세 정보:
|
| 재고: | 사용 가능 | 표면: | 음란의 깨끗하고 자유롭습니다 |
|---|---|---|---|
| 온도: | 고온 저항 | Trs: | > = 2200 |
| 크기: | 맞춤형 | 제품 자료: | WC |
| 강조하다: | Precision Carbide Threading Inserts,Customized Size Threading Inserts,Optimized Chip Control Carbide Inserts |
||

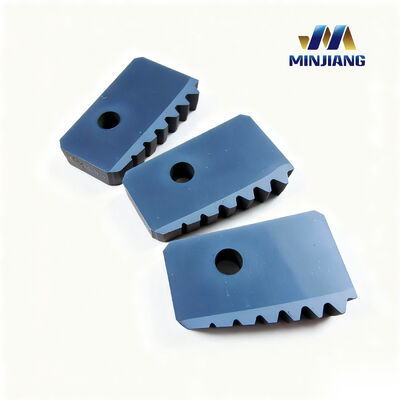

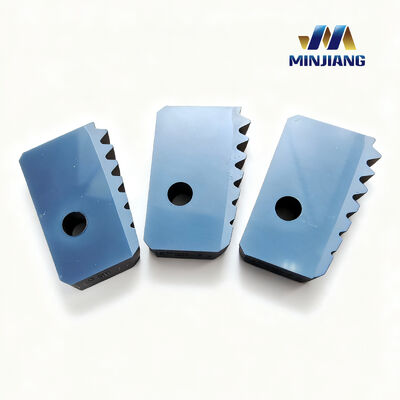

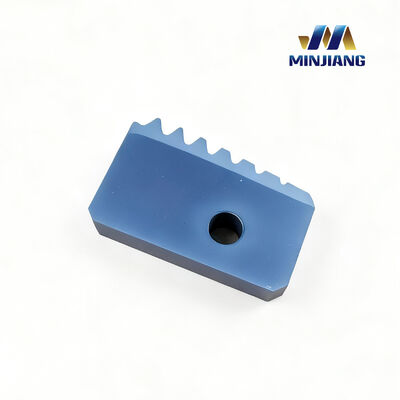

Precision Carbide Threading Inserts for Oil and Gas Industry
Description
Carbide threading inserts are precision cutting tools engineered for producing internal threads in a wide range of materials. Manufactured from tungsten carbide, these inserts are known for their superior hardness and wear resistance. Compared to conventional taps, they enable higher threading accuracy and deeper thread depth in a shorter processing time. With an optimized chip-breaker geometry, they also effectively reduce vibration and heat buildup during operation, ensuring smoother and more efficient machining performance.
Product Features
Reliability in Demanding Environments: Carbide threading inserts perform consistently under high stress, temperature, and abrasive conditions, ensuring stability in the most challenging machining applications.
Precision-Engineered for Accuracy: Each insert is manufactured to exacting standards, guaranteeing tight-tolerance threads and reliable outcomes across repeated operations.
Optimized Chip Control: Advanced geometry enables smooth chip formation and evacuation, reducing the risk of chip jamming and protecting both the tool and workpiece.
Streamlined Operation & Maintenance: Designed for quick installation and straightforward handling, these inserts minimize setup time and simplify daily maintenance routines.
| Name | Description | Features | Application Areas |
| ISO | ISO Metric Full Profile Thread Insert is a tool with a complete thread profile, designed to meet ISO Metric thread standards. |
Complying with ISO standards ensures that the processed threads have uniform size and precision, and the full-profile design improves processing efficiency. Made of high-quality materials, with high hardness and wear resistance
|
|
| W | Threads specially designed for pipe connections | The tooth angle of Whitworth thread is 55°, which is different from many other thread standards. The rounded top and bottom of the thread can reduce the wear of the thread tool on the top and improve its fatigue resistance. |
|
| TR | 30° Trapezoidal thread | Trapezoidal thread refers to a metric trapezoidal thread with a tooth angle of 30°.Trapezoidal threads are mainly used for transmission, have high strength and rigidity requirements, are not easy to loosen, and have high transmission efficiency. |
|
| ACME | ACME trapezoidal thread cutter is a tool specially designed for processing ACME trapezoidal threads, with specific angle and shape design. |
The ACME thread usually has a tooth angle of 29° (there are other angles such as 30°, but 29° is the most common), and the tooth profile is trapezoidal, wider at the bottom and narrower at the top.
|
|
| UNJ | UNJ thread is a mechanical thread with high strength and durability, especially suitable for applications requiring high strength and reliable connection. |
High strength: Compared with cUNJ threads have higher strength. The external thread bottom of UNJ threads is in an arc shape. This design helps to reduce stress concentration and increase the fatigue life of the threads.
|
|
| NPT | The NPT thread has a tooth angle of 60° and a taper of 1:16. |
NPT threads can provide reliable sealing performance. NPT threads comply with the US National Pipe Thread Standard (ANSI/ASME B1.20.1, etc.) and have good versatility and interchangeability.
|
|
| NPTF | NPTF thread is a thread standard for pipe connections developed by the American National Standards Institute (ANSI), mainly used in North America. |
Sharp tooth shape and short root: higher connection stability and security. NPTF thread has good self-locking performance, can provide greater load-bearing capacity, high tooth shape accuracy, and can prevent leakage without sealing medium.
|
|
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: What is the lead time?
A: Lead time can vary depending on the product and quantity ordered but typically ranges from 1-4 weeks.
3. Q: What is the best way to contact you?
A: You can contact us by email, telephone, or online chat.
4. Q: How do carbide threading inserts contribute to precision machining?
A: Carbide threading inserts are engineered for precision machining, producing threads with a high degree of accuracy. Their meticulous design enhances consistency in thread quality, making them ideal for precision components.
